Neo-Pure Filter Housings Selection Guide

Neo-Pure Filter Housings Selection Guide

Neo-Pure features a wide selection of 304L or 316L stainless steel housings. Optional 3M™ Scotchkote™ 134 Fusion Bonded Epoxy Coating for sea water applications.
Download the Neo-Pure Filter Housings
Selection Guide
| .pdf

Share this product

Product Description

Neo-Pure

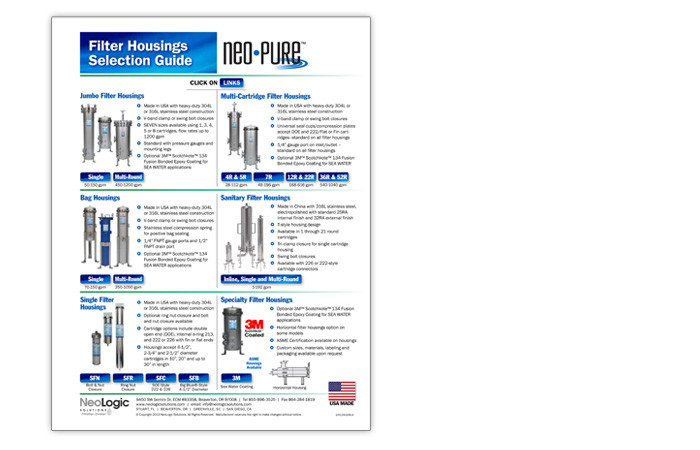

The Neo-Pure Filter Housings Selection Guide below contains the complete Neo-Pure line of filter housing products.

Jumbo Filter Housings

  • Made in the USA with heavy-duty 304L or 316L stainless steel construction
  • V-band clamp or swing bolt closures
  • Seven sizes available using 1, 3, 4, 5, or 8 cartridges offering flow rates up to 1200 gpm
  • Standard option comes with pressure gauges and mounting legs
  • Optional 3M™ Scotchkote™ 134 Fusion Bonded Epoxy Coating for sea water applications

Multi-Cartridge Filter Housings

  • Made in the USA with heavy-duty 304L or 316L stainless steel construction
  • V-band clamp or swing bolt closures
  • Universal seal cups/compression plates accept DOE and 222/Flat or Fin cartridges are standard on all filter housings
  • 1/4" gauge port on inlet/outlet standard on all filter housings
  • Optional 3M™ Scotchkote™ 134 Fusion Bonded Epoxy Coating for sea water applications

Bag Filter Housings

  • Made in the USA with heavy-duty 304L or 316L stainless steel construction
  • V-band clamp or swing bolt closures
  • Stainless steel compression spring for positive bag sealing
  • 1/4" FNPT gauge ports and 1/2" FNPT drain port
  • Optional 3M™ Scotchkote™ 134 Fusion Bonded Epoxy Coating for sea water applications

Sanitary Filter Housings

  • Made in China with 316L stainless steel, electropolished with standard 25RA internal finish and 32RA external finish
  • T-style housing design
  • Available in 1 through 21 round cartridges
  • Tri-clamp closure for single cartridge housing
  • Swing bolt closures
  • Available with 226 or 222-style cartridge connectors

Single Filter Housings

  • Made in the USA with heavy-duty 304L or 316L stainless steel construction
  • Optional ring nut closure and bolt nut closure available
  • Cartridge options include double open end (DOE), internal o-ring 213, and 222 or 226 with fin or flat ends
  • Housings accept 4-1/2", 2-3/4", and 2-1/2" diameter cartridges in 10", 20", and up to 30" in length

Specialty Filter Housings

  • Optional 3M™ Scotchkote™ 134 Fusion Bonded Epoxy Coating for sea water applications
  • Horizontal filter housings option on some models
  • ASME Certification available on housings
  • Custom sizes, materials, labeling, and packaging available upon request
